Turning Engineering Capacity
Details below of Monard’s turning capability, get in touch to find out more information

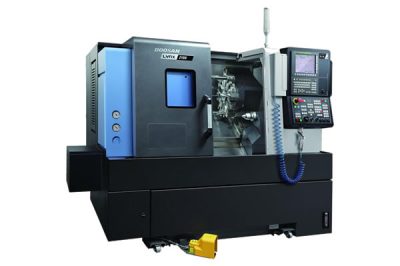

DOOSAN LYNX 2100B
Carriage:
X Axis Travel 175mm
Z Axis Travel 330mm
X/Z Axis Max Cutting Feedrate 500mm/rev
X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 30m/mi
Capacity:
Swing Over Bed 510mm
Swing Over Saddle 290mm
Max Turning: 320mm
Max Workpiece Length 305mm
Spindle Speed 5,000 rpm
Work Holding:
Crawford Multi-Bore Collet
System:3/8″ to:2½”
Kitegawa:8″ 3 Jaw Chuck
Kitegawa 16C Collet System

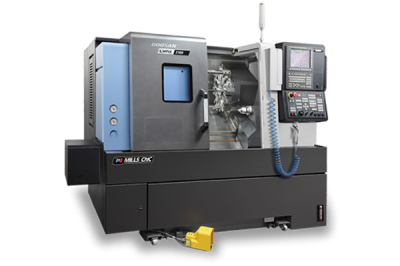

DOOSAN LYNX 2100A
X Axis Travel 205mm
Z Axis Travel 340mm
X/Z Axis Max Cutting Feedrate 500mm/rev
X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 36m/min
Capacity:
Swing Over Bed 600mm
Swing Over Saddle 400mm
Max Turning : 320mm
Max Workpiece Length 350mm
Spindle Speed 6,000 rpm
Kitegawa 5C Collet System

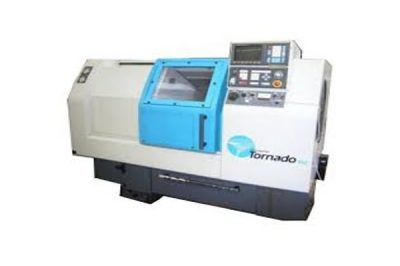

COLCHESTER TORNADO
Carriage:
60mm Bar
Capacity:
8″ Chuck
Capacity:
Work Holding
Crawford Muliti-Bore Collet
System 3/8″ to :2¼
Kitegawa 8″ 3 Jaw Chuck

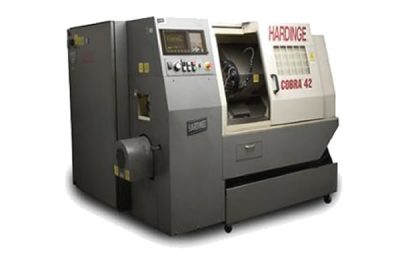

HARDINGE COBRA 42
Carriage:
42mm Bar
Capacity:
6″ Chuck Capacity
Work Holding:
Hardinge 5C & 16C Collet System
Kitegawa 6″ 3 Jaw Chuck
Manual and Ancillary Capacity
Details below of Monard’s turning capability, get in touch to find out more information
XYZ 1550
Carriage:
54mm Bar
Capacity:
8″ Chuck
Max Spindle Speed 2500 rpm
Max Workpiece Length 750mm
ANCLLARY EQUIPMENT
