Milling Engineering Capacity
Details below of Monard’s milling capability, get in touch to find out more information

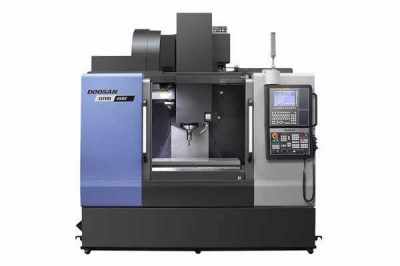

DOOSAN DNM 4500
Axis Stroke:
X Axis (Table) 762mm
Y Axis (Saddle) 435mm
Z Axis (Spindle Head) 510mm
Work Holding:
Kurt 6″ Vices
Microloc 50 Series Work Holding
Table:
920mm x 435mm
Spindle:
(BIG Plus Type)
Speed Range 120 to 12,000 rpm (Direct Drive)
Probing:
Renishaw Tool Setting Table Prob

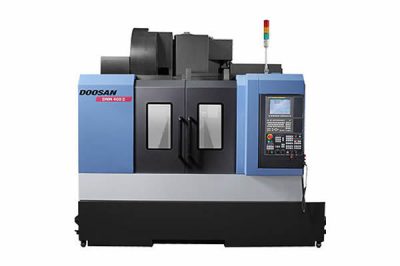

DOOSAN 400 II
Axis Stroke:
X Axis (Table) 762mm
Y Axis (Saddle) 435mm
Z Axis (Spindle Head) 510mm
Work Holding:
Kurt 6″ Vices
Microloc 50 Series Work Holding
Table:
920mm x 435mm
DOOSAN 400 II
Axis Stroke:
X Axis (Table) 762mm
Y Axis (Saddle) 435mm
Z Axis (Spindle Head) 510mm
Table:
920mm x 435mm
Spindle:
(BIG Plus Type)
Speed Range 120 to 12,000 rpm (Direct Drive)
Work Holding:
Kurt 6″ Vices
Nikken 4th Axis
Probing:
Renishaw Tool Setting Table Prob

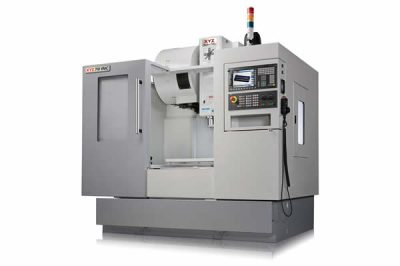

XYZ 710
Axis Stroke:
X Axis 710mm
Y Axis 450mm
Z Axis 510mm
Table:
800mm x 450mm
Spindle:
BT 40 Speed range 60 to 8000 rpm
Work Holding:
Kurt 6″ Vice
GSA 4th Axis

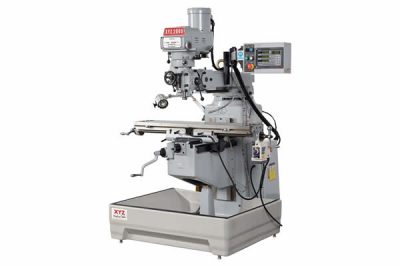

XYZ EMC 2000
Table:
800mm x 450mm
Spindle:
BT 40 Speed range 60 to 8000 rpm
Work Holding:
Kurt 6″ Vice
GSA 4th Axis
